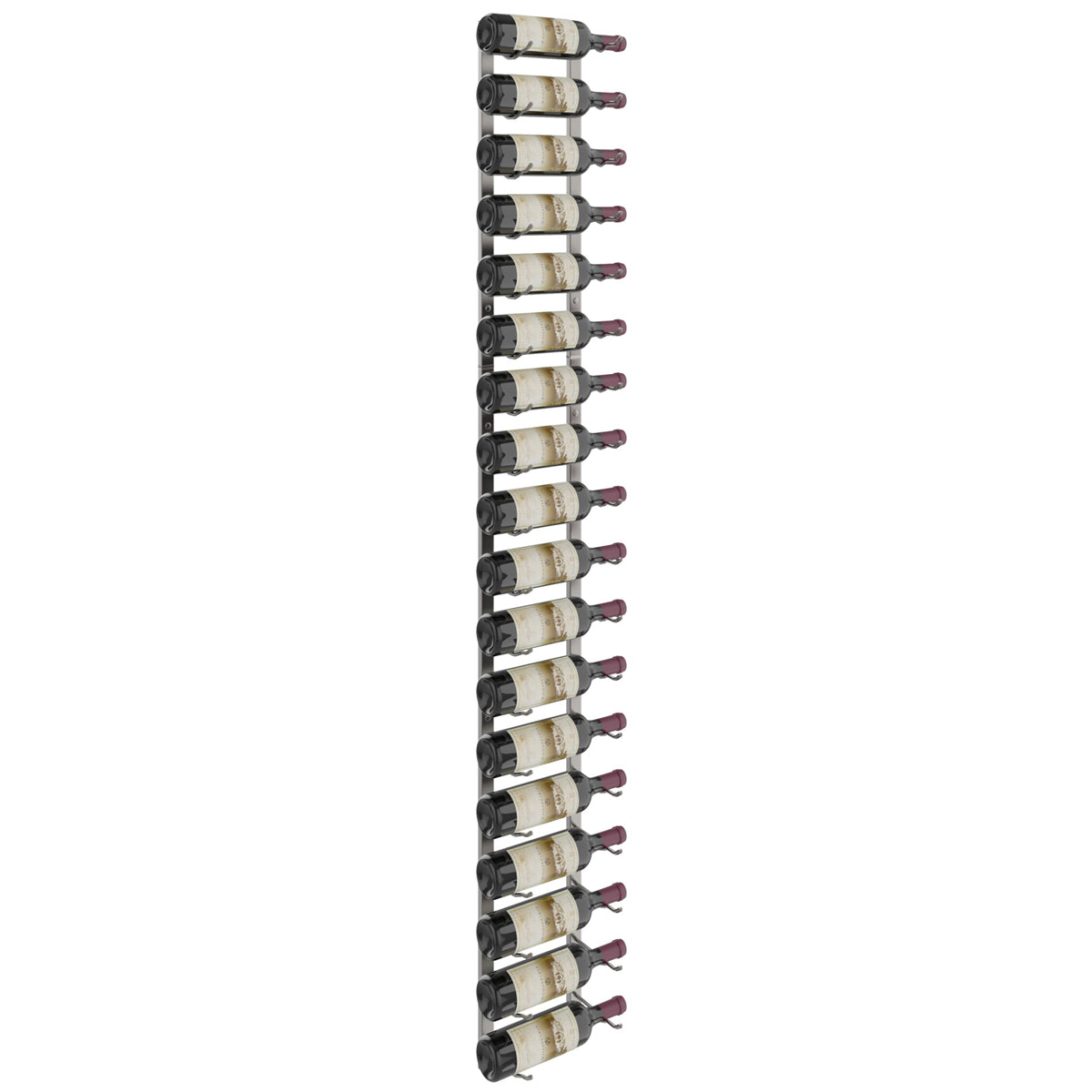

VintageView Wall Mounted W Series 6 - 1830mm - 18 > 54 Bottle Wine Rack

FREE DELIVERY

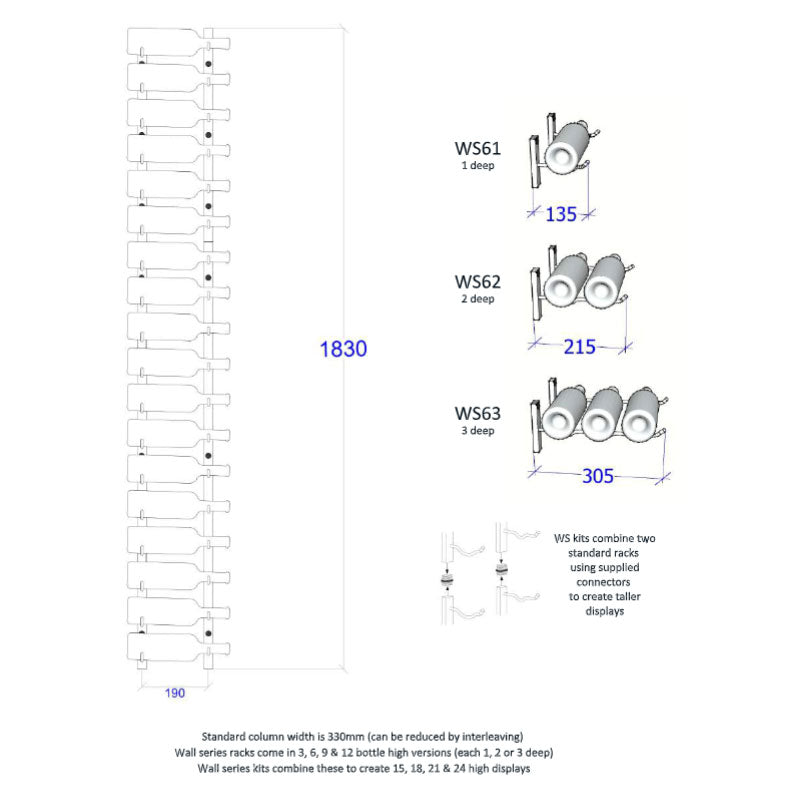

• Height: 1830mm 72"
• Width: 330mm 13"

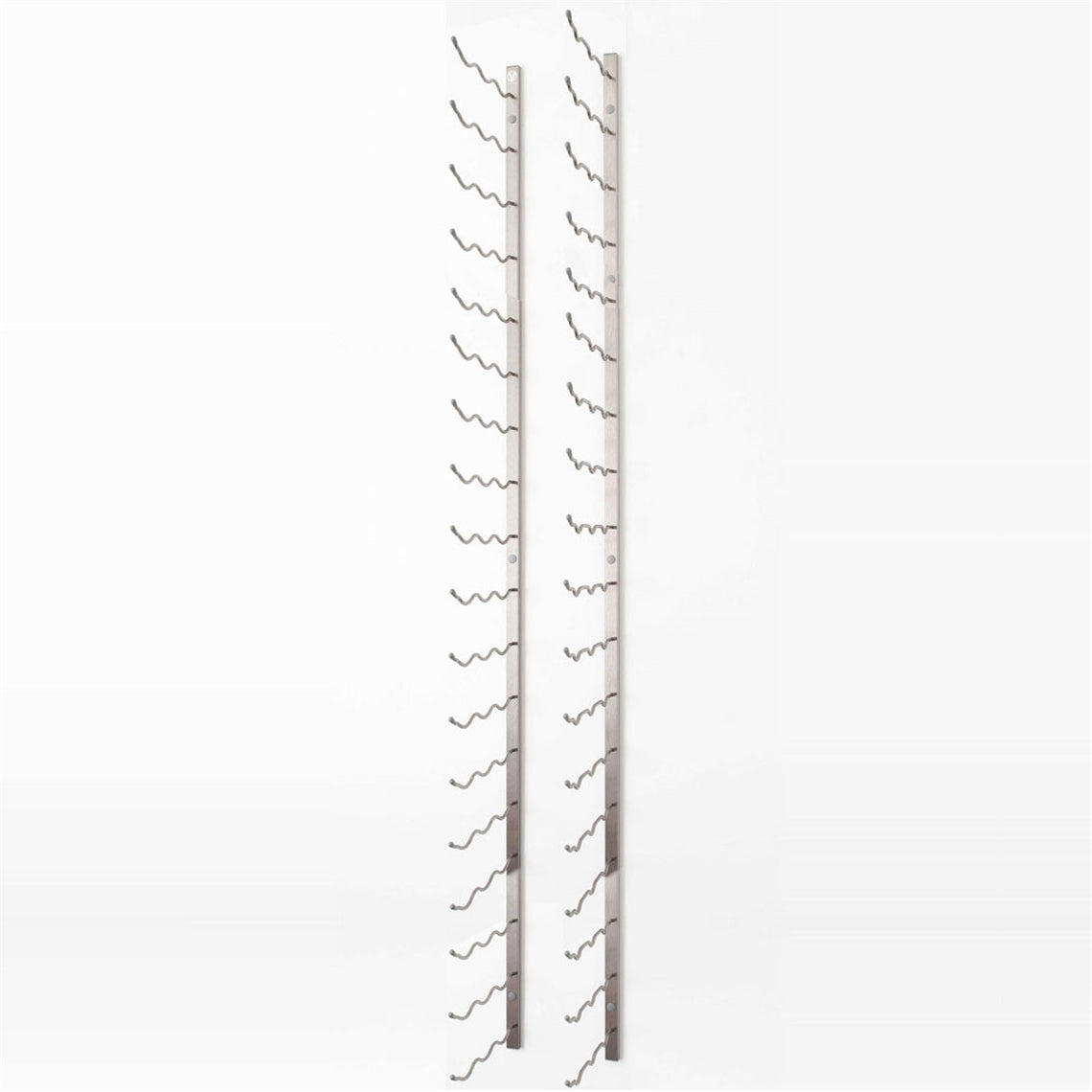

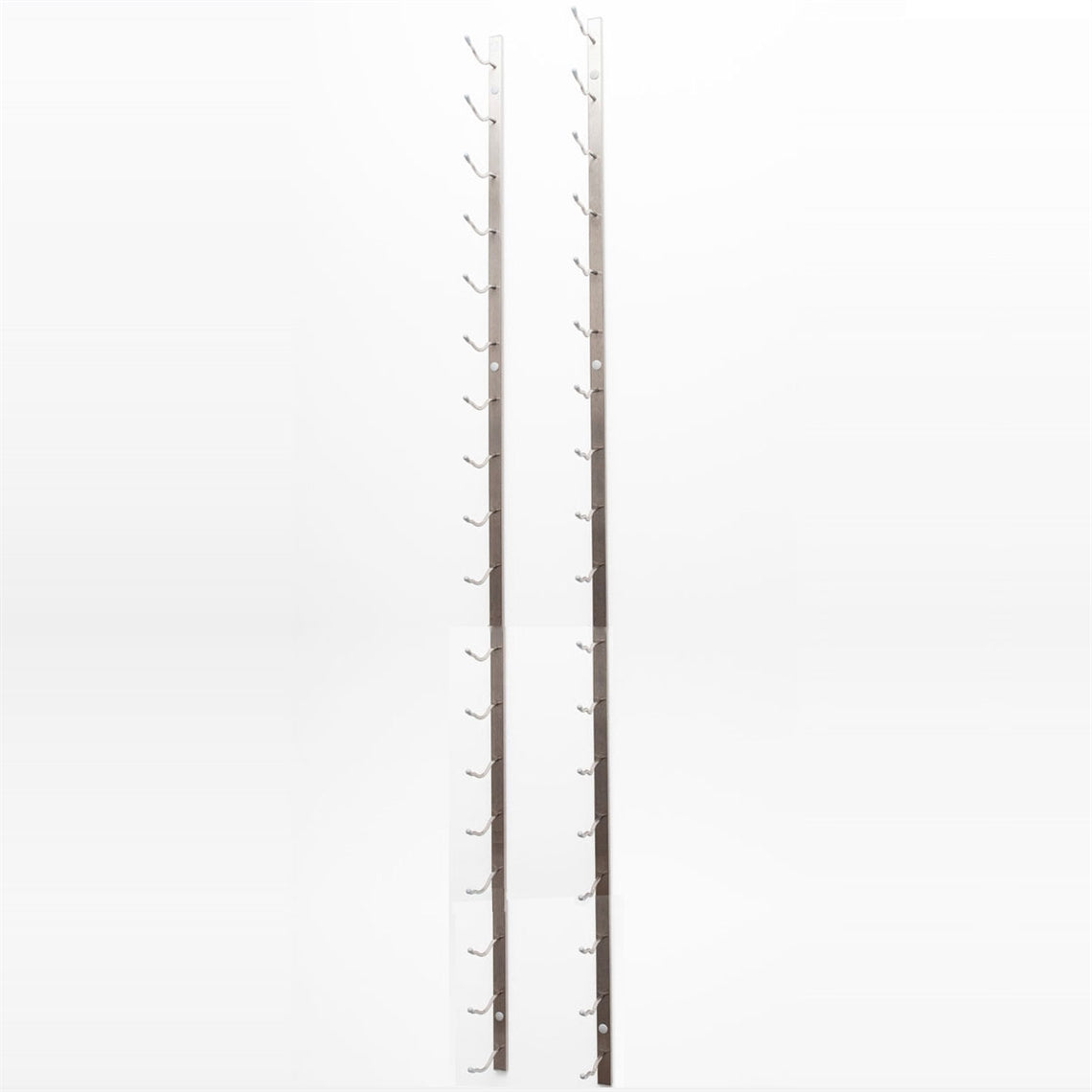

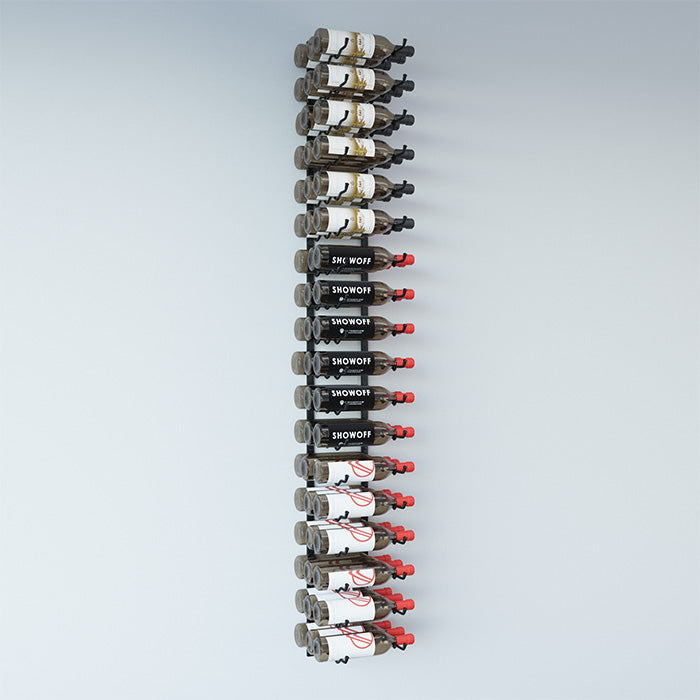

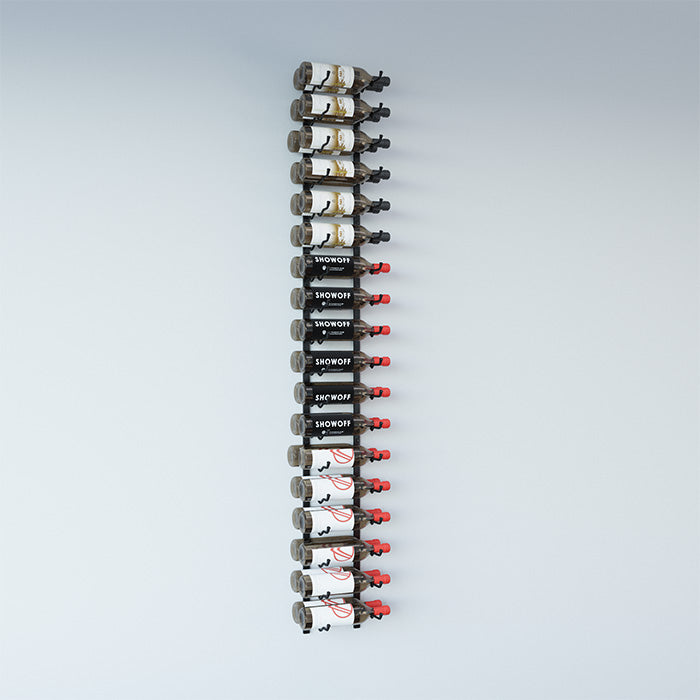

• Capacity: 18, 36 or 54 Bottles - 6ft (h) 18 bottles high by 1, 2 or 3 bottles deep
• 1 Bottle Depth: 135mm 5 1/4"

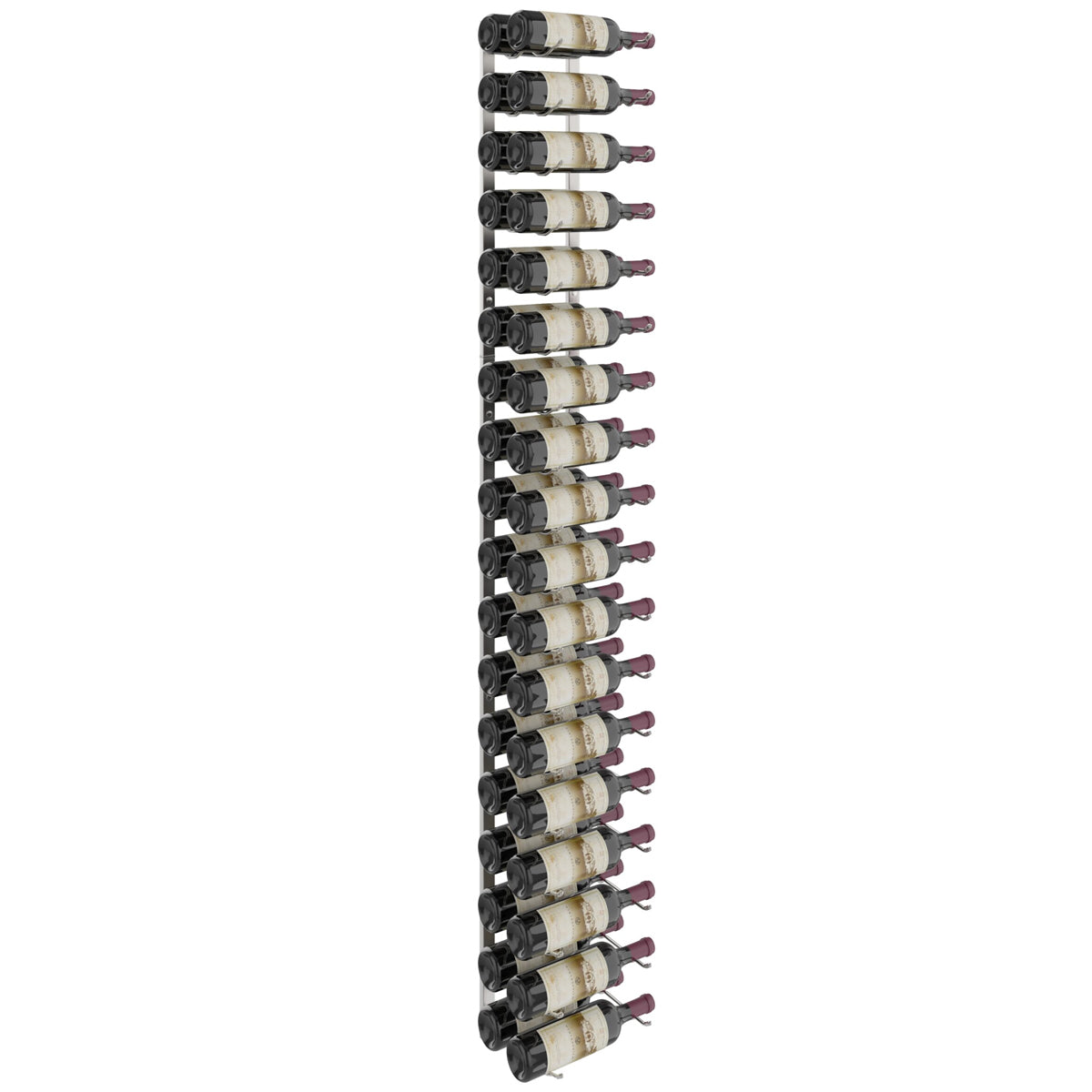

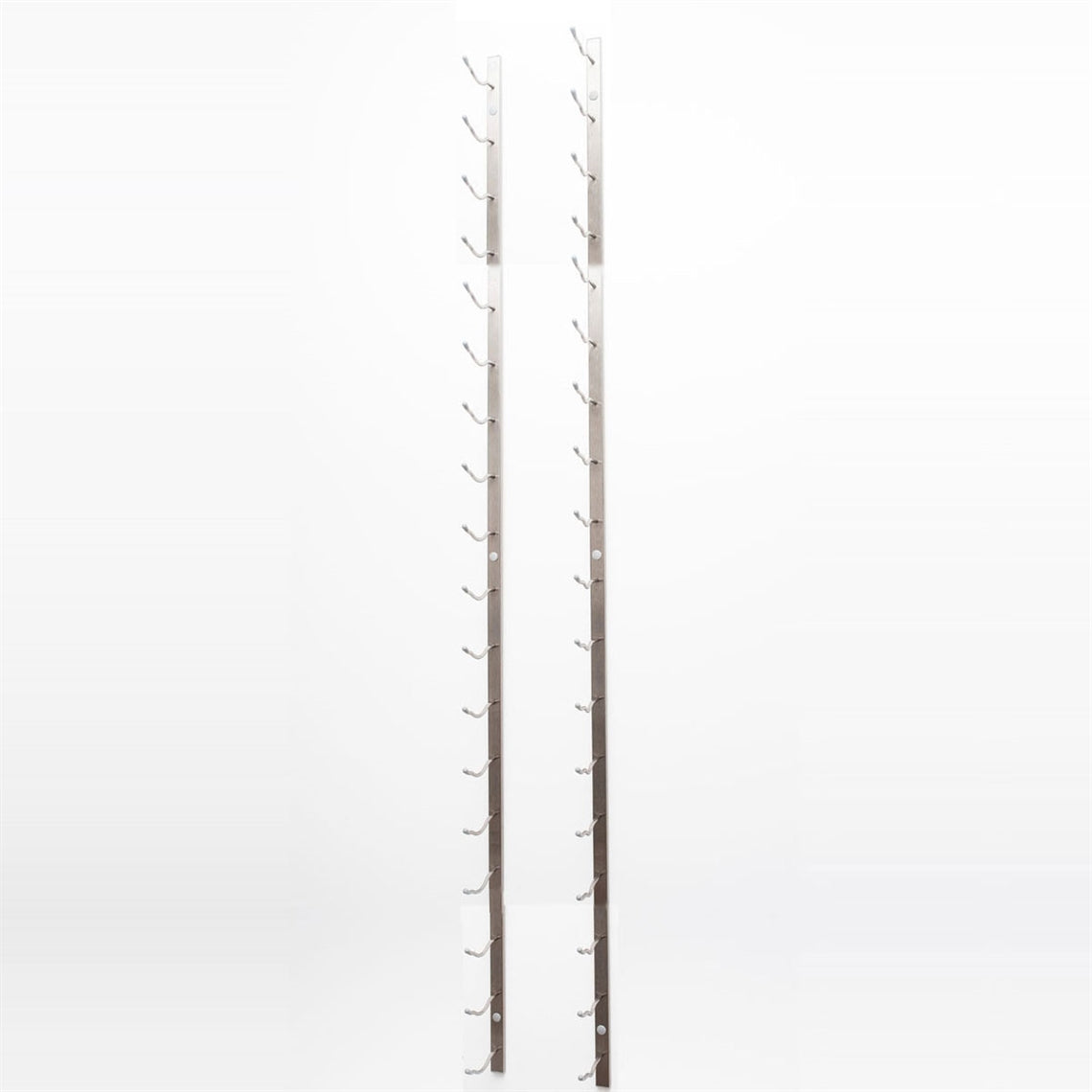

• 2 Bottle Depth: 215mm 8 1/2"

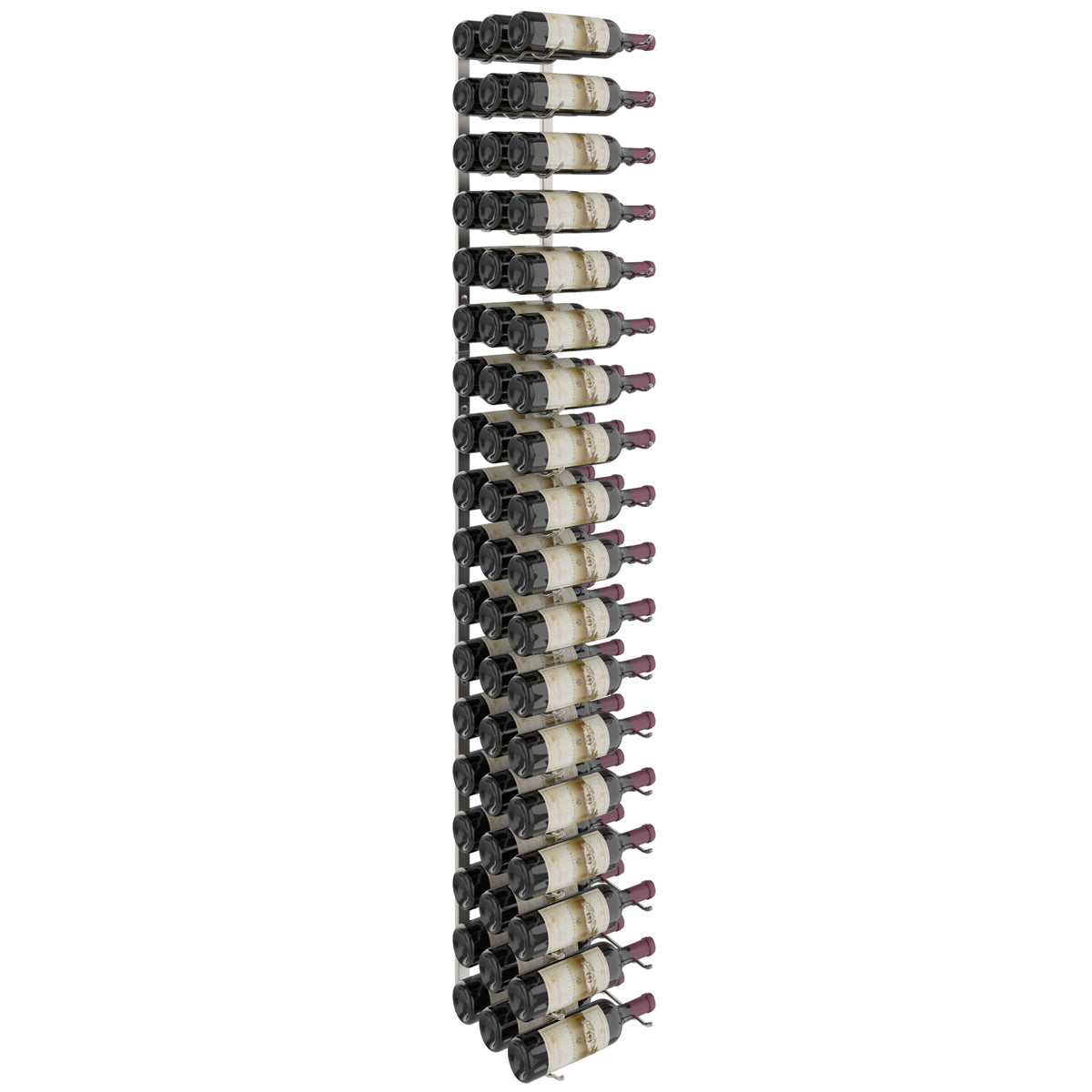

• 3 Bottle Depth: 305mm 12"
• Distance between each holding 'rod': 90mm
• Easy to install, fixings included!
• Designed to hold a standard 750ml Bordeaux size bottle
• Label view presentation

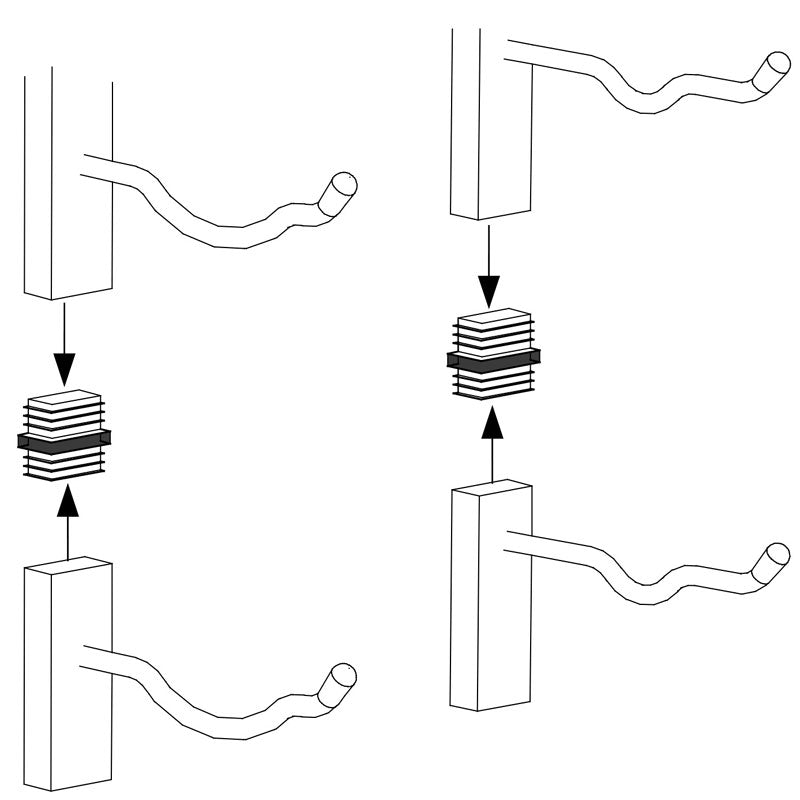

• Note: This set includes: 1x WS4 and 1x WS2
• Available in Black or Platinum

About the VintageView W Series Wine Racks

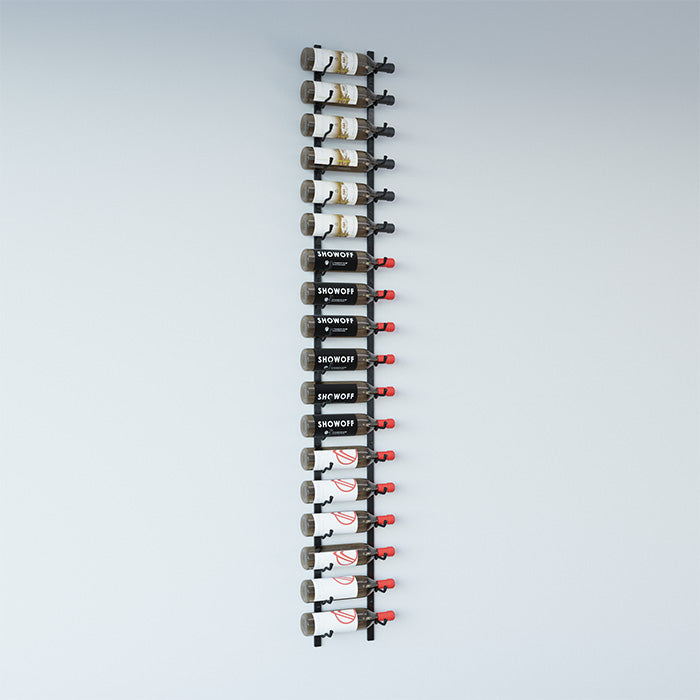

The Vintage View display wine racks store bottles with the label facing forward instead of the traditional method of the cork facing forward.

The rack is made of high-quality steel with a matt black (powder-coated) or platinum (brushed nickel) finish. It is designed for Bordeaux bottles, although Burgundy and standard Champagne bottles will also fit within the rack.

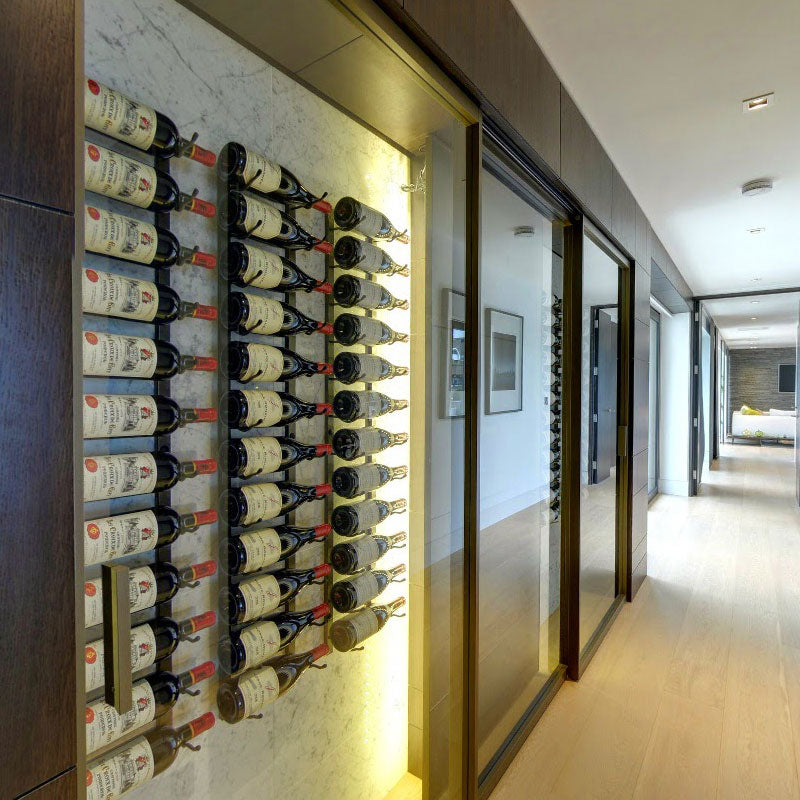

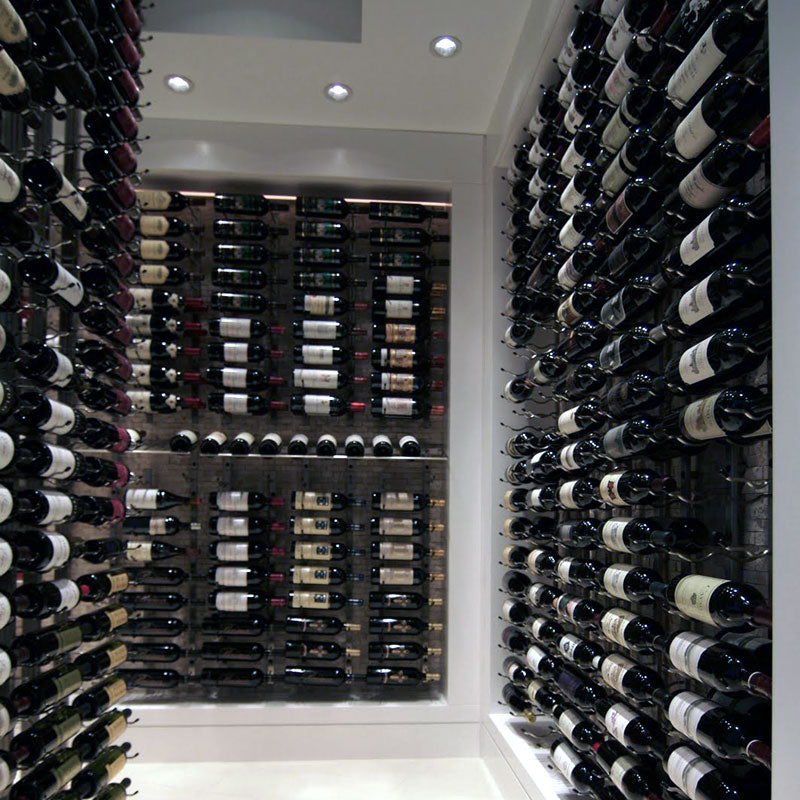

Ideal wine racks for any situation, from small kitchens and personal wine collections to restaurants and bars to fully stocked wine cellars. VintageView wine racks can turn your wine bottles into an impressive display feature.

Vintage View wine racks provide an extremely flexible and adaptable wine storage solution as you can store bottles 1, 2 or 3 deep. They are simple and easy to install (3 screws to each strip) and can be used to store wine bottles in nearly any space, regardless of height, depth or width limitations.

Installing a VintageView W Series Wine Rack

Each VintageView rack comes with two wall-mounted strips, one to hold the base of the bottle and one to hold the neck of the bottle. These can be fixed to the wall either 'left' or 'right' handed so that the bottleneck can face either left or right.

Fixings depend on the nature of the wall surface you are mounting on, but each rack comes with a hardware kit consisting of 2 x toggle bolts, 4 x spiral drywall anchors and 6 x screws. This kit is all you need for plasterboard (drywall) or wooden surfaces. For concrete or brick surfaces, we recommend 5mm x 40mm screws with appropriate anchors as required.

A standard wine bottle (750ml) averages 300mm in length. For this size bottle, the strips should be mounted 190mm apart (starting a minimum of 70mm from your first perpendicular wall) and then 140mm between sets of racks. Each complete rack, therefore, requires approximately 330mm of space, side-to-side, for installation with standard bottles.

Downloads & PDFs

• Spec Sheet - WS61 | WS62 | WS63
• VintageView W Series Installation Guide
